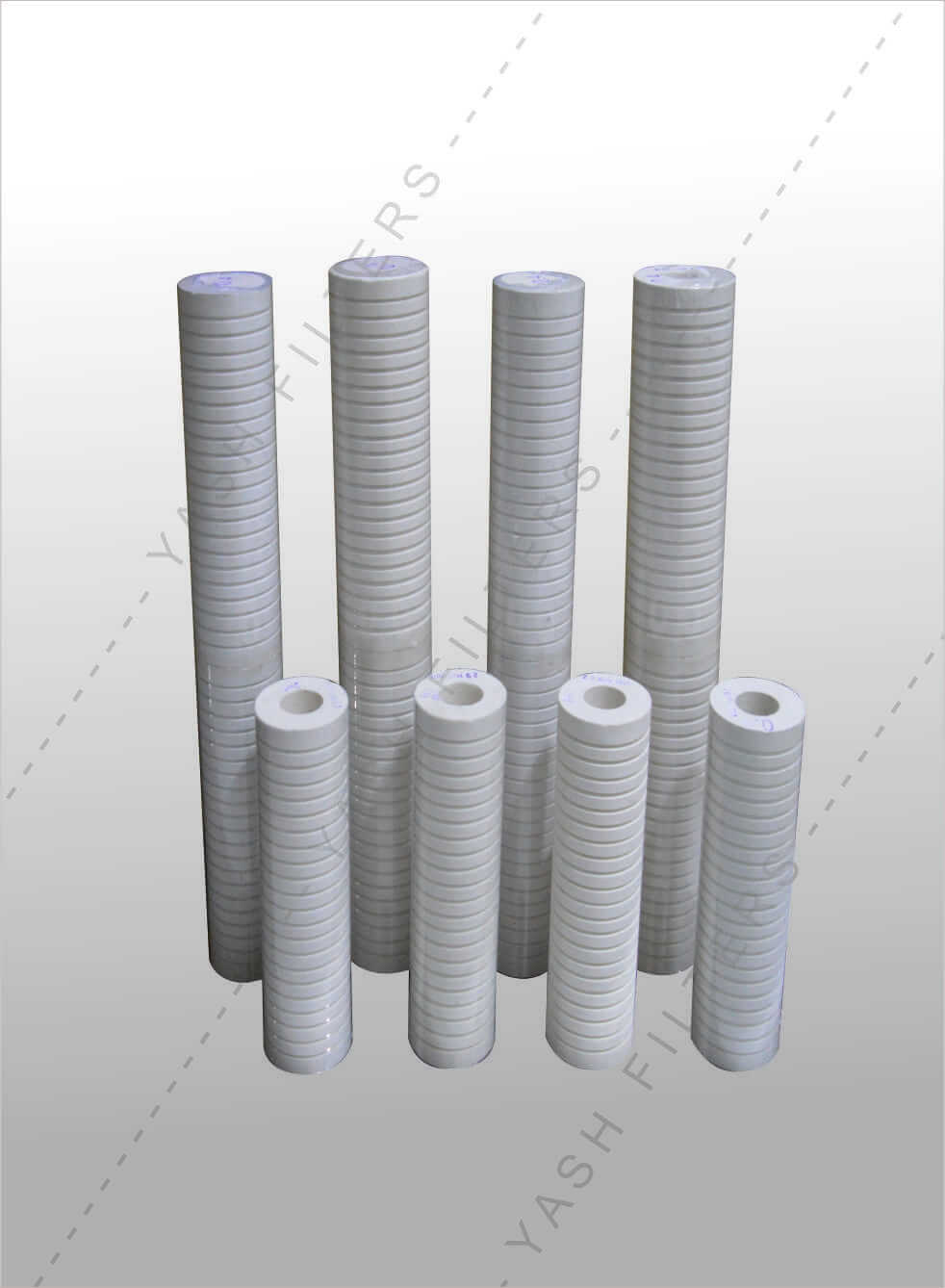

Cellulose resin bonded filter cartridges are a type of depth filtration cartridge that are designed to remove impurities and contaminants from liquids. These filter cartridges are made from a blend of high-quality cellulose fibers and thermosetting resins, which are bonded together under heat and pressure to form a rigid, porous structure.
The cellulose resin bonded filter cartridges are effective in removing a wide range of contaminants, including sediment, rust, and other particulate matter. They are commonly used in applications such as food and beverage processing, pharmaceuticals, water treatment, and industrial processes.
The filter cartridges are available in a range of sizes and micron ratings, allowing them to be customized to meet specific filtration requirements. They are designed to be easy to install and maintain, with a simple drop-in design that eliminates the need for complex housing assemblies.
Some key features of cellulose resin bonded filter cartridges include their high flow rates, long service life, and high dirt holding capacity. They are also resistant to chemical and biological attack, making them ideal for use in harsh environments.
Overall, cellulose resin bonded filter cartridges are a reliable and effective filtration solution for a wide range of applications.
Item Description
| MOC |
: Cellulose Resin Bonded |
| Size |
: 10”, 20”, 30”, 40” |
| Outer Diameter |
: 62.5 mm, 70 mm |
| Inner Diameter |
: 25 mm, 28 mm, 30 mm |
| Micron Rating |
: 0.2, 0.4, 0.7, 1, 5, 10, 25, 50, 75, 100 |
| Configuration |
: DOE |
| Construction |
: Grooved, Un-Grooved |
Application
- Water
- Chemicals
- Paints
- Inks
- Organic Solvents
- Lube Oil
- Edible Oil
- Resins
- Air & Gas
- Pharmaceuticals
Features
- Consistent And Reliable Performance
- Excellent Flow With Low Pressure Drop
- High Dirt Holding Capacity
- 100% Polypropylene For Wide Chemical Compatibility
- High Strength & Pressure Resistance
- Nominal Filtration Rating
- Graded depth filtration gives excellent performance
